LN29711-3-25
Series: Medium duty Tiny Housed Flush
Type: stud
The part LN29711-3-25 is the cadmium plated version so would be our part number MTHFTLS-25D in steel cadmium plate. However, cadmium plated is non RoHS conform, so we recommend to purchase the clear zinc plated version:
MTHFTLS-25Z MTHFTLS-25D.jpg "image of LN29711-3-25 turnlock part")

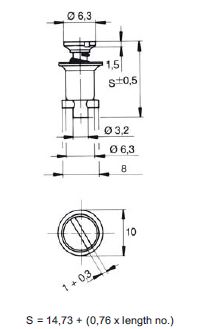

.jpg "turnlock LN29711-3-25 technical drawing")
Studlength of LN29711-3-25 :
25
Headstyle of LN29711-3-25 :
Slotted recess flush head
LN29711-3-25's material grade :
Steel / cadmium-plated, CrVI-free, clear passivation
Tensile strength of LN29711-3-25 :
1330 N
Maximum working load:
900 N
Part LN29711-3-25 maximum working temperature
120 °C
