HEHSEGTLH-4ZN
Series: Heavy duty Extra High Strength Extended Grip
This Turnlock HEHSEGTLH-4ZN is a stud extra high strength extended grip part. We recommend the use of the following Turnlock Cross Pin:
HEHSTEGCPZN
Recommended receptacles :
HEHSTEGRZN
.jpg "image of HEHSEGTLH-4ZN turnlock")

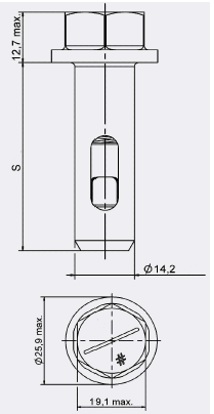

.jpg "turnlock HEHSEGTLH-4ZN technical drawing")
Material of HEHSEGTLH-4ZN :
Steel / zinc/nickel-silver, CrVI-free, clear passivated and sealed
Type of HEHSEGTLH-4ZN :
Stud
Headstyle of HEHSEGTLH-4ZN :
Hex recess head
Max.Tensile Strength :
44000 N
Max. Working Load :
Max. Working Temperature :
215 °C
Panel Thickness Range :
Frame Thickness Range :
Material Grade of Cup :
TurnLock can offer you the part HEHSEGTLH-4ZN with Certificate of Quality, Certificate of Conformity and Certificate of Origin on request.
TurnLock is offering part HEHSEGTLH-4ZN as factory new.
